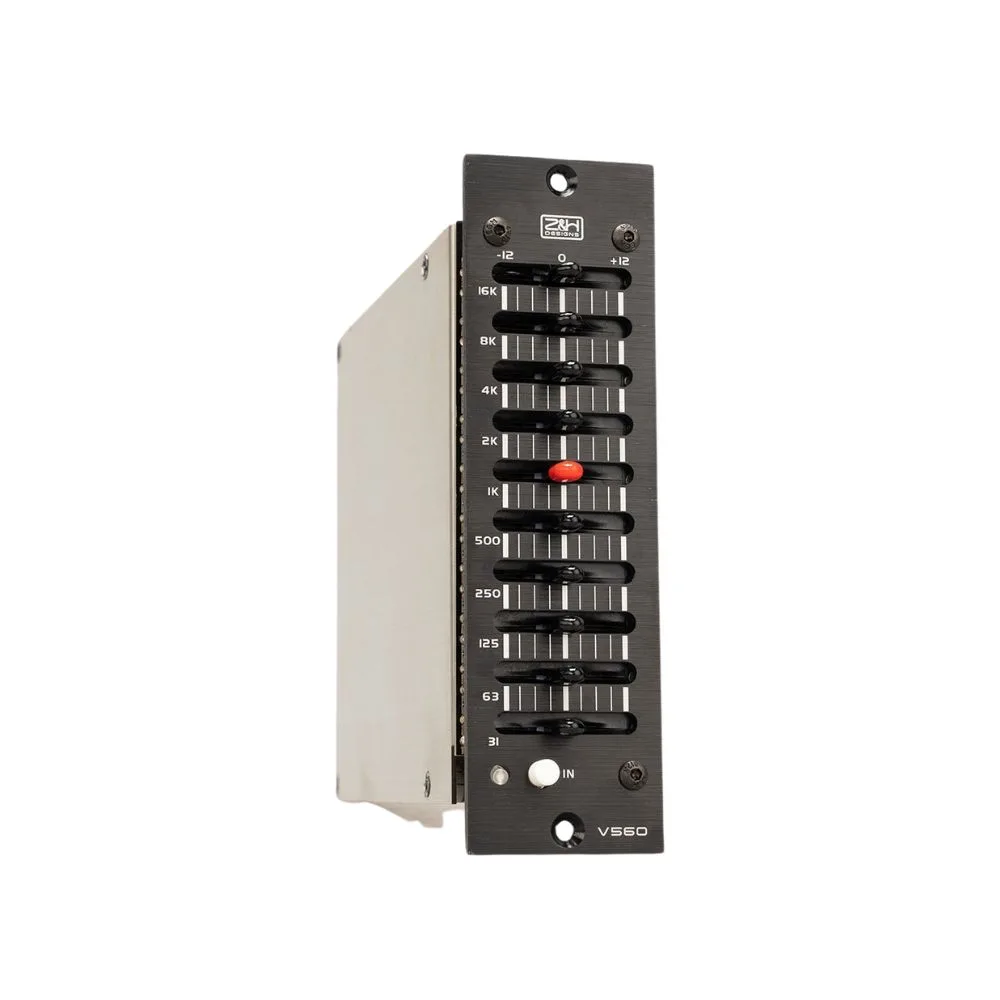

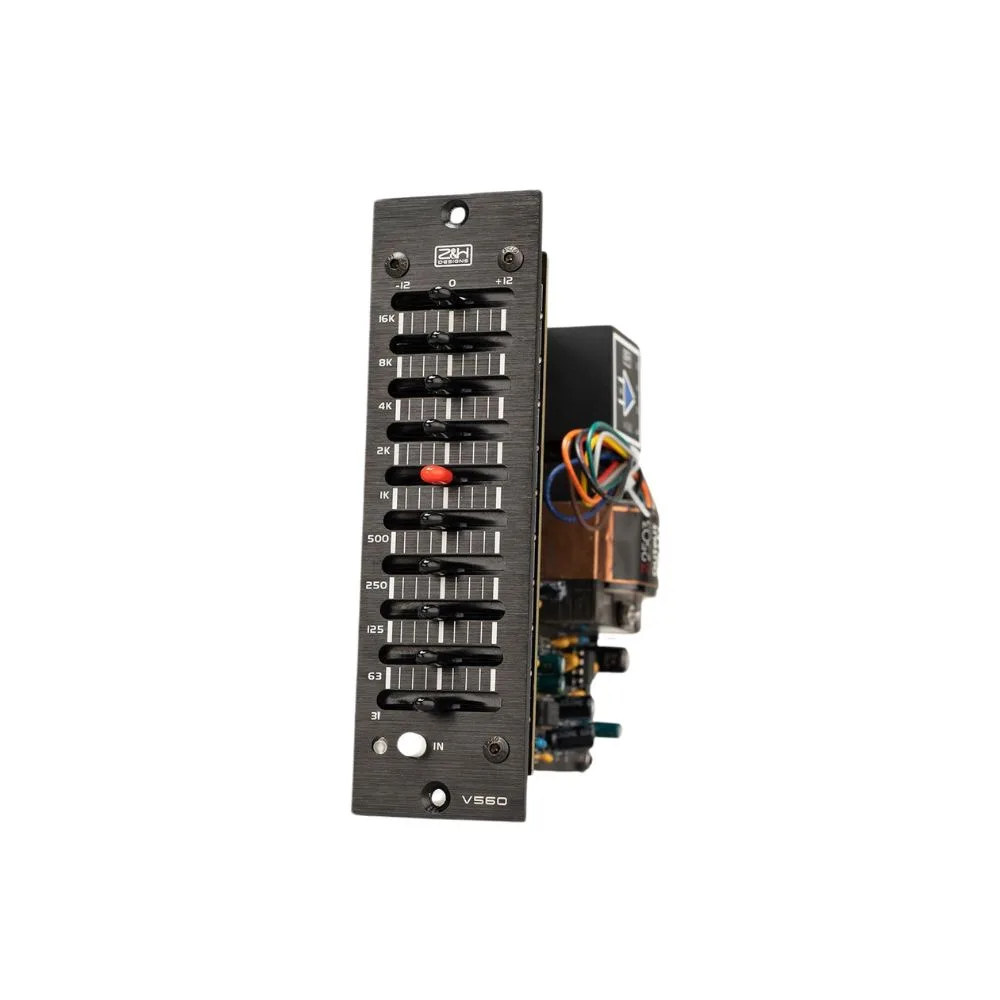

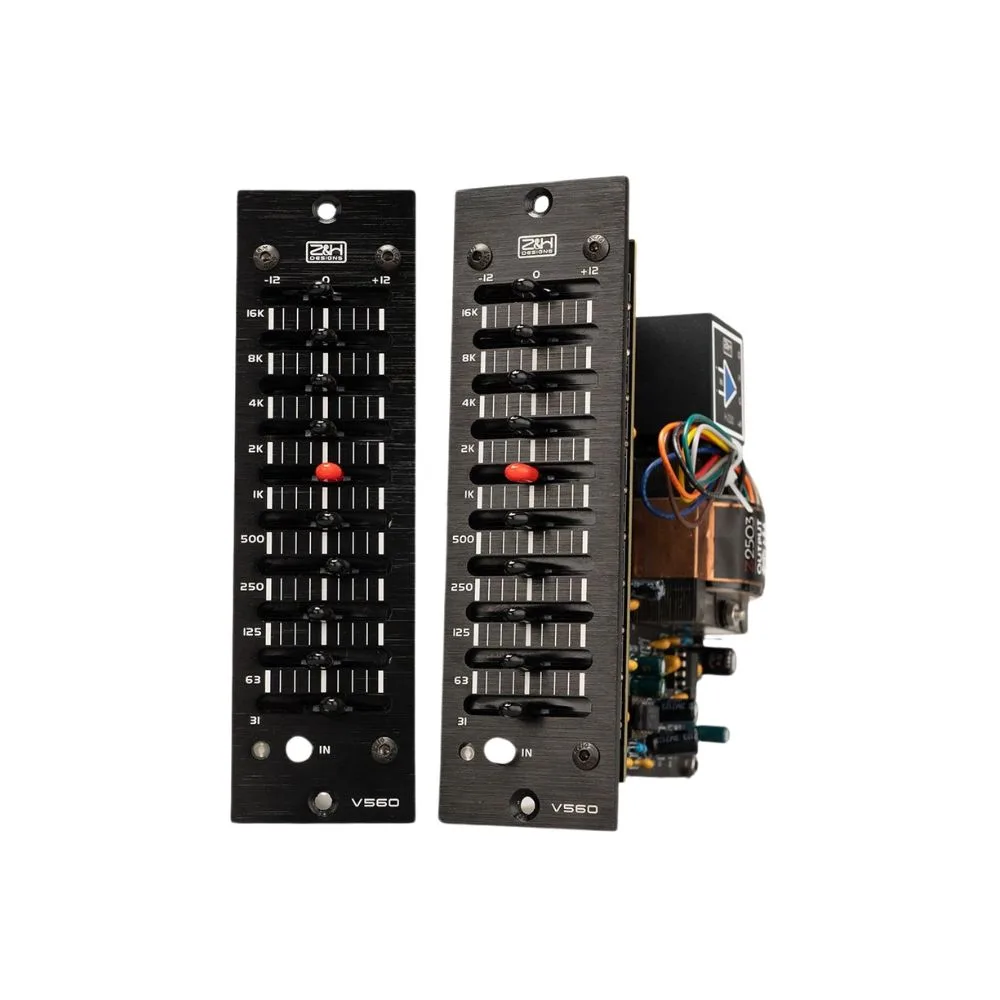

V560
Graphic EQ
Faithful Vintage Recreation
V560 was engineered to match the sound, behavior, and feel of its classic predecessor from the 60s and 70s. This fidelity is achieved through a true discrete circuit design, original component values, and the traditional 10-band graphic EQ layout in a 500-series format.
Instant Impact, Musical Control
With ±12 dB of gain per band and carefully voiced musical frequencies, V560 brings sources forward effortlessly. Even small adjustments add excitement and density, while heavier boosts and cuts provide powerful sound-carving capability without harshness.
Discrete Components, Modern Precision

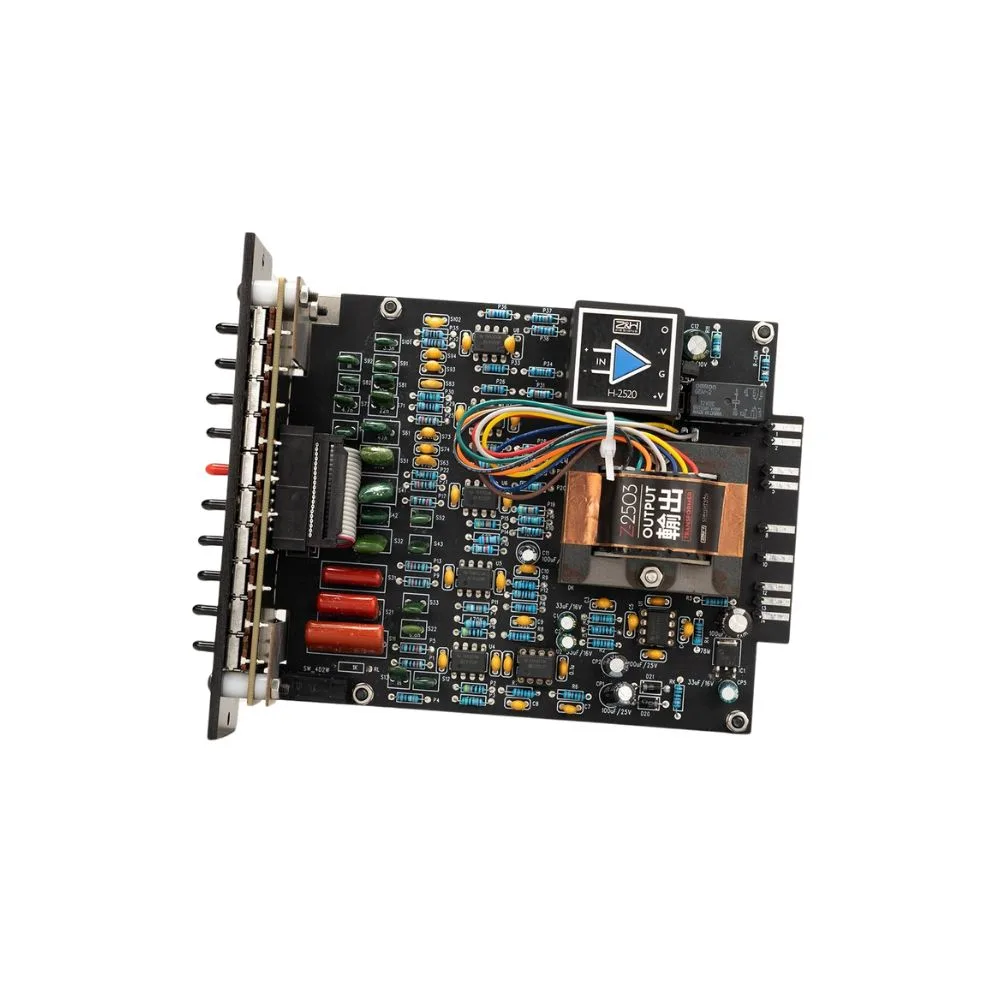

To preserve the original character, custom components were developed, including the Z-2503 output transformer and H-2520 op-amp. Years of refinement ensured precise synchronization across the discrete circuit, resulting in vintage tone with improved resolution and consistency.
Creative Simplicity
V560 embodies the beauty of analog graphic EQs: intuitive control with complex results. Play the gain faders and the interaction of Q, harmonics, and phase delivers musical shaping naturally, whether for subtle enhancement or aggressive coloration.
Handcrafted and Personally Verified
Each V560 is handcrafted in limited quantities and individually tested by professional engineers before shipping. Every unit is signed by the craftspeople and engineers involved, ensuring boutique-grade quality and human verification.
Built for Longevity
Backed by a 5-year warranty and a global service network, V560 is supported with fast turnaround times and affordable replacement parts, ensuring long-term reliability in professional environments.
FEATURES
- Discrete analog graphic equalizer inspired by classic 60s–70s designs
- 10 musical frequency bands in a 500-series format
- ±12 dB gain per band for subtle shaping or aggressive carving
- Custom Z-2503 output transformer and H-2520 op-amp
- Wide, musical Q behavior that responds naturally to gain changes
- Rich harmonic coloration with minimal adjustment
- Ideal for drums, guitars, and character-driven mixing
- Handcrafted, individually tested, and signed by engineers
- 5-year warranty with fast global service support
Specifications
| Frequency Range | 22 Hz – 20 kHz |
| Signal-to-Noise Ratio | –93.094 dBV |
| 31 Hz Band | ±12 dB boost / cut |
| 63 Hz Band | ±12 dB boost / cut |
| 125 Hz Band | ±12 dB boost / cut |
| 250 Hz Band | ±12 dB boost / cut |
| 500 Hz Band | ±12 dB boost / cut |
| 1 kHz Band | ±12 dB boost / cut |
| 2 kHz Band | ±12 dB boost / cut |
| 4 kHz Band | ±12 dB boost / cut |
| 8 kHz Band | ±12 dB boost / cut |
| 16 kHz Band | ±12 dB boost / cut |
| Harmonic Distortion | 0.032% (20 Hz – 20 kHz) |
| Shipping Dimensions (H × W × D) | 3.8″ × 10.9″ × 2.6″ (9.5 × 27.5 × 6.5 cm) |
| Shipping Weight | 1.6 lbs (0.75 kg) |
| Last Updated | 07/08/2025 |
