FC1
500 Series Fet Compressor
Fast FET Compression with Classic Character
The Drawmer FC1 brings the speed, punch, and musicality of FET compression into a compact 500 Series module. Inspired by the FET circuitry of Drawmer’s renowned 1970s range, it delivers responsive soft-knee feedback compression that adds impact, presence, and energy while maintaining precise dynamic control.
Complete Creative Control

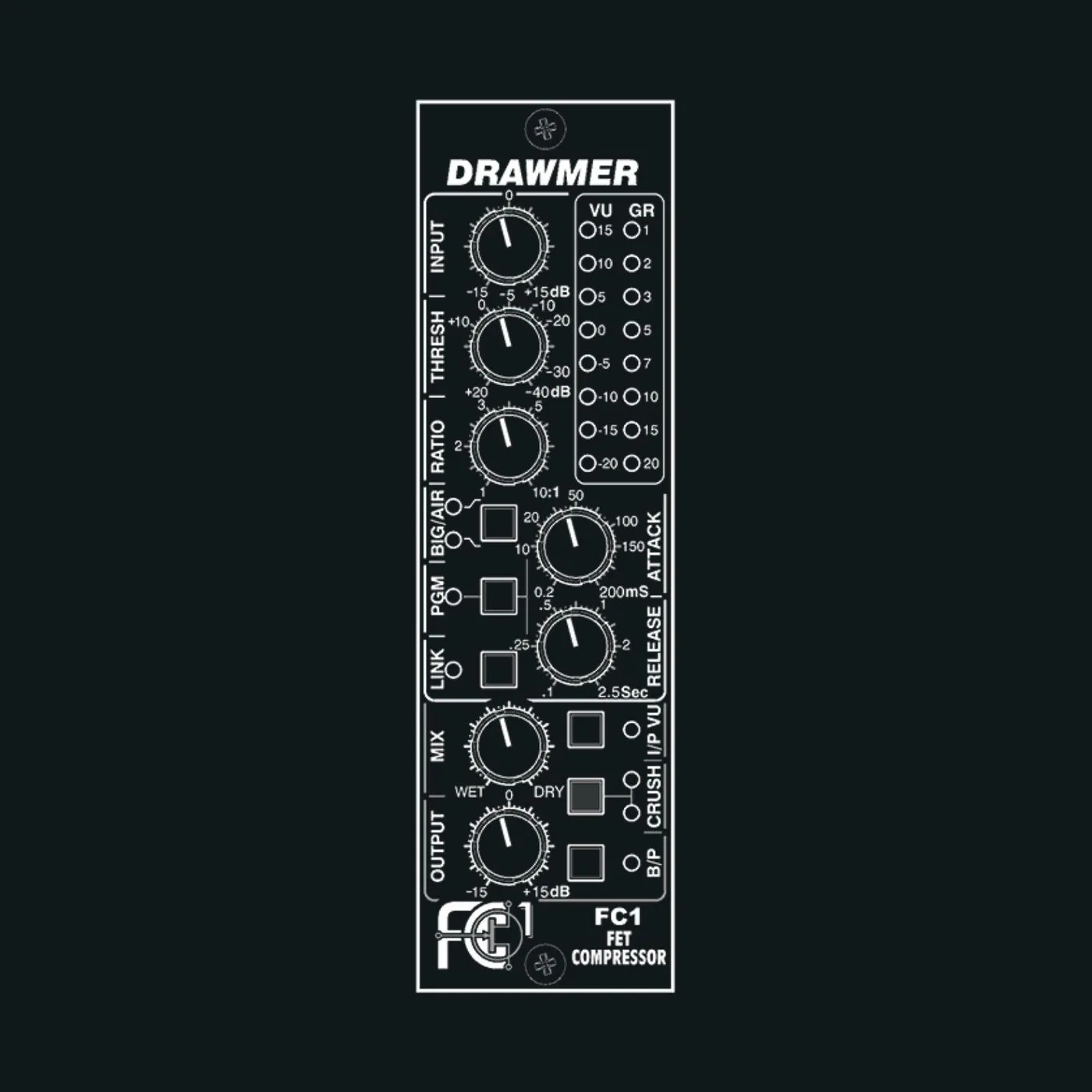

The FC1 features a comprehensive control set rarely found in a 500 Series compressor, including Input, Output, Threshold, Ratio, Attack, Release, and Wet/Dry Mix controls. Precision 21-position detented knobs ensure repeatable settings, while PGM mode intelligently adjusts release behaviour to reduce pumping and produce smoother, more natural compression.
BIG, AIR & CRUSH
BIG mode relaxes the compressor’s response to low frequencies for tighter, more natural bass, while AIR preserves clarity and openness in the top end throughout compression. The integrated CRUSH saturation circuit introduces harmonic richness, analog warmth, and additional character, allowing the FC1 to move effortlessly from transparent control to bold, energetic coloration.
Designed for Professional Studios

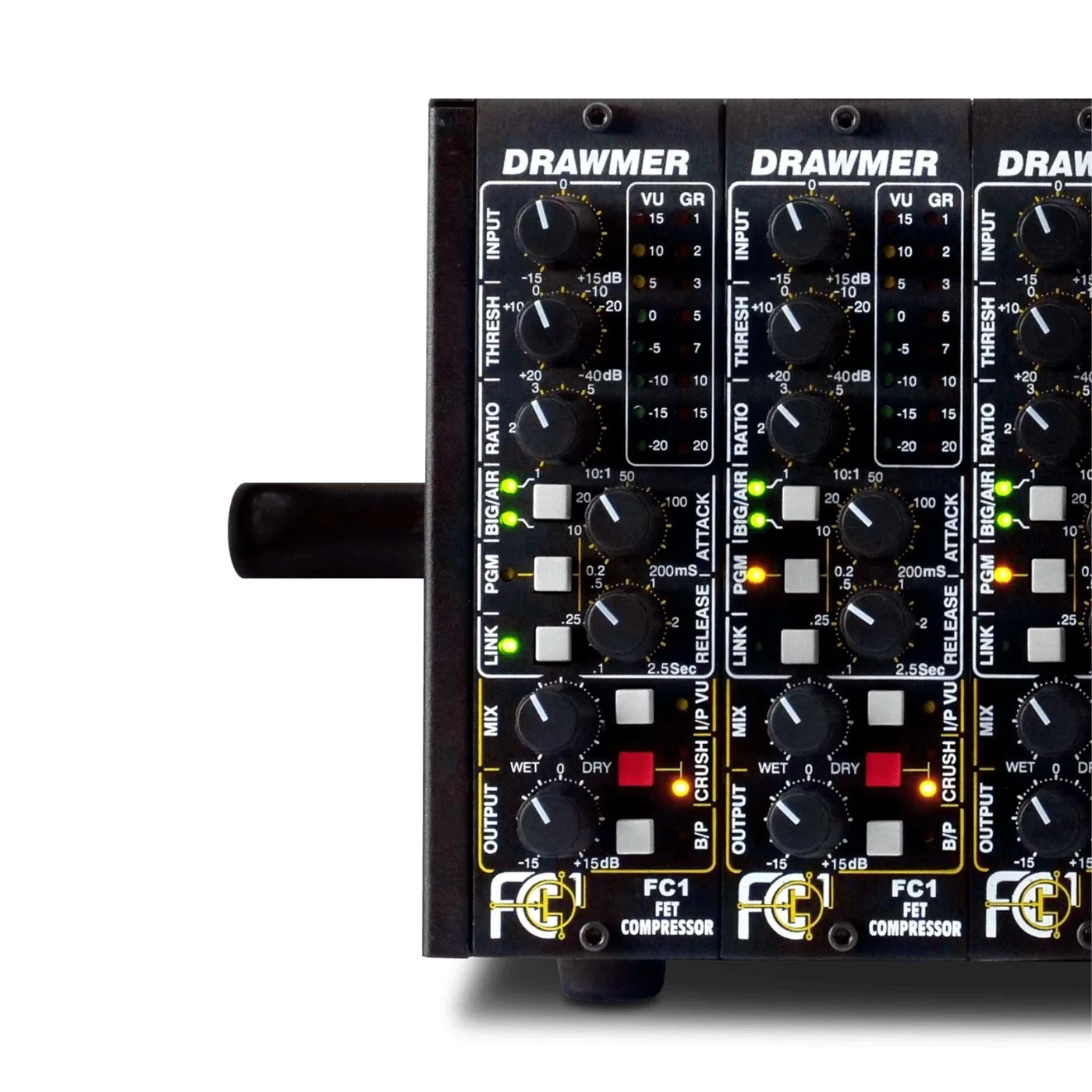

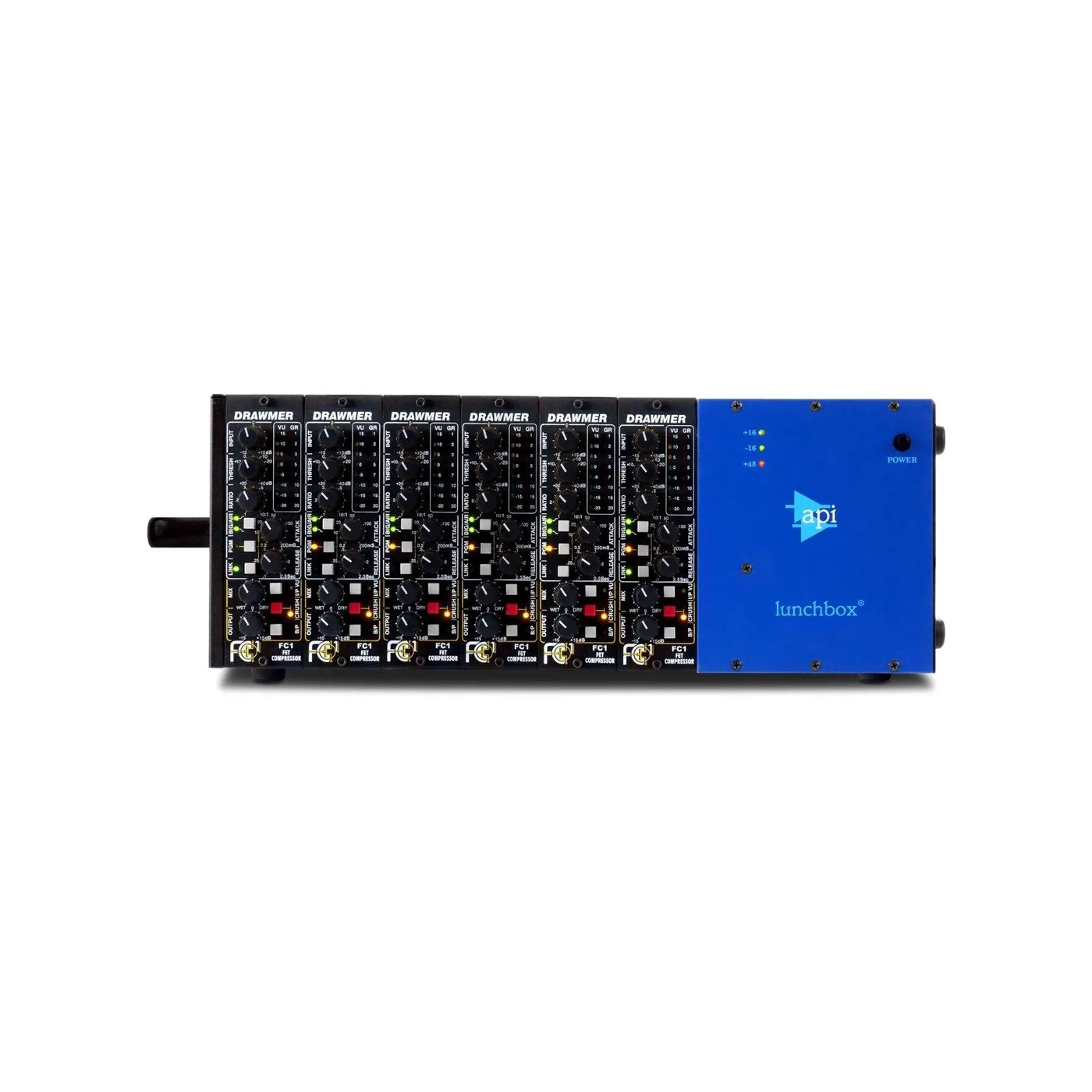

Comprehensive VU metering displays gain reduction or selectable input/output levels, while hard-wire bypass ensures transparent signal comparison. Dedicated stereo linking enables adjacent FC1 modules to operate as perfectly matched stereo or multi-channel compressors, making the FC1 an outstanding choice for tracking, mixing, and bus compression.
Features
- Fully featured soft-knee FET compressor with fast, responsive dynamics control
- Precision 21-position detented controls for accurate, repeatable settings
- Dedicated Input and Output gain controls for flexible gain staging
- BIG and AIR modes enhance low-end impact while preserving high-frequency clarity
- PGM mode delivers intelligent programme-dependent release for smoother, more musical compression
- Integrated CRUSH harmonic saturation adds warmth, punch, and analog character
- Wet/Dry mix control for effortless parallel compression
- Stereo and multi-channel linking via the 500 Series link bus
- Comprehensive VU metering with Gain Reduction, Input, and Output monitoring
- Hard-wire bypass for completely transparent signal comparison
- Legendary Drawmer engineering, reliability, and build quality
- Designed and handmade in the United Kingdom
Specifications
| Input Impedance | 20k Ohms |
| Maximum Input Level | +18 dBu |
| Output Impedance | < 100 Ohms |
| Frequency Response | 20 Hz – 20 kHz ±0.4 dB |
| THD & Noise @ 1 kHz, ref 0 dBu |
0.02% |
| THD & Noise @ 1 kHz, ref 10 dBu |
0.4% |
| Noise at Unity Gain Dry Mix Control |
−98 dBu |
| Weight | 0.38 kg |
In the interests of product development, Drawmer reserve the right to modify or improve specifications of this product at any time, without prior notice.
